3DUJ-2207
$42,078.00 USD
$42,078.00 USD
Sale
Sold out
Re-stocking soon
Couldn't load pickup availability
About the Product
Big Color, Compact Size

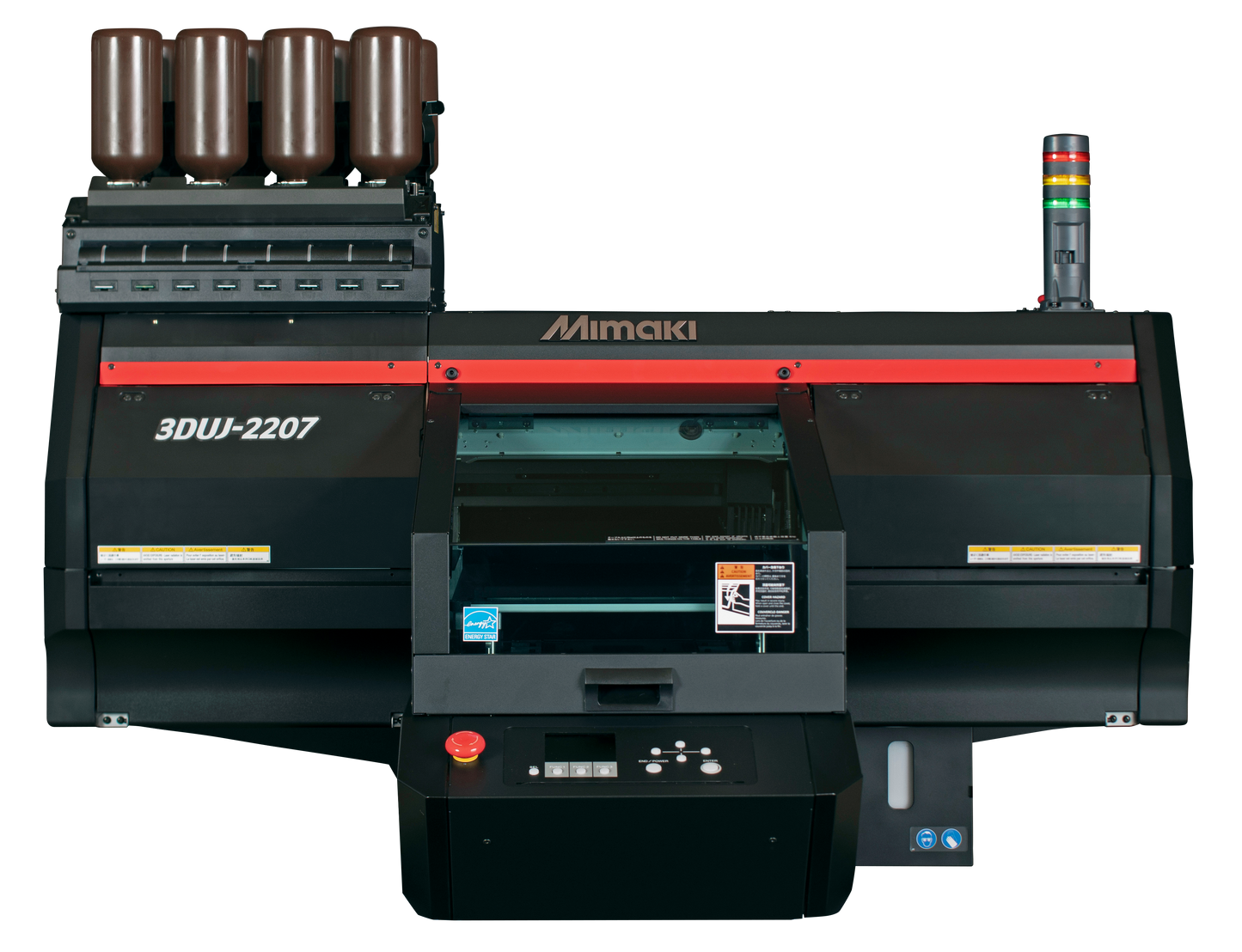

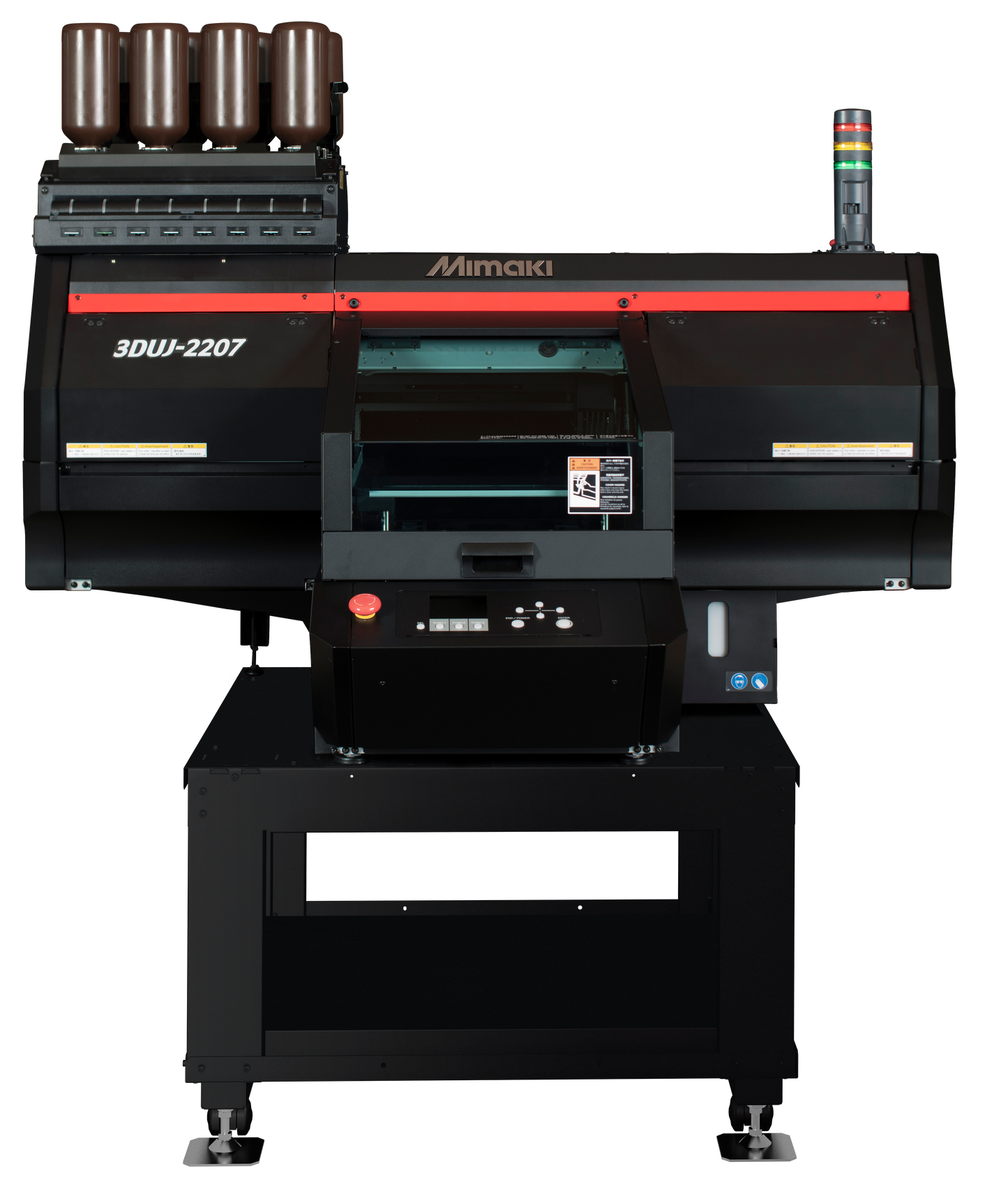

The 3DUJ-2207 is the latest addition to the Mimaki 3DUJ full color photorealistic 3D printer family. Using the same printing technology and build materials as the larger 3DUJ-553, the 3DUJ-2207 is an affordable solution for entry into the full-color 3D printing market. The smaller build area is matched with higher resolution print heads, producing stunning full-color 3D prints on a platform that is easily scalable as your business grows. Learn more about our Educational Bundle
- More than 10 million possible color combinations
- 28 Micron layer thickness
- Water-soluble support material
- Clear ink for transparent and translucent effects; high-opacity white for accurate color reproduction
- 8 x 8 x 3 inch (203 x 203 x 76 mm) build area
- Single UV-LED curing lamps
- Customizable device output ICC profiles with optional Mimaki Profile Master 3 (MPM3) software
- Includes Mimaki 3DLink and Printer Driver software
Specifications
| Build Area (W × D × H) |
8 x 8 x 3 inches (203 x 203 x 76 mm) |
| Color Range |
More than 10 million |
| Print Mode / Resolution / Thickness |
Standard/28 micron
|
| Curing |
Air-cooled LED-UV Lamp x1
|
| File Formats |
SSTL, OBJ, VRML, PLY, 3MF, |
| Interface |
Ethernet 1000 BASE-T |
| Operational Environment |
Temperature: 68-86°F (20-30°C) |
| Power |
Single-phase (AC100-120V / 220-240V, ± 10%, 50 / 60Hz ± 1Hz) x 1 |
| Power Consumption |
350 W Or less |
| Outer Dimension (W x D x H) |
53.3 x 50.7 x 33.7 inches (1,355 x 1,290 x 856 mm)
|
| Weight |
309lbs / 140kg |
| Layer thickness |
28μm |
| Resolution |
1200 x 1200 DPI
|
| Software |
Mimaki 3DLink |
| Options |
|
| Safety Standards |
VCCI-classA, FCC ClassA, UL62368-1, |
Inks
| 3D Modeling Ink (MH-100) | Cyan | Magenta | Yellow | Black | White | Clear | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| 1L Bottle | MH100-C-BA | MH100-M-BA | MH100-Y-BA | MH100-K-BA | MH100-W-BA | MH100-CL-BA |
*Inks sold vary by county, see specification chart above for details.
| 3D Support Ink (SW-110) | Support |
|---|---|
| 1L Bottle | SW110-Z-BA |
