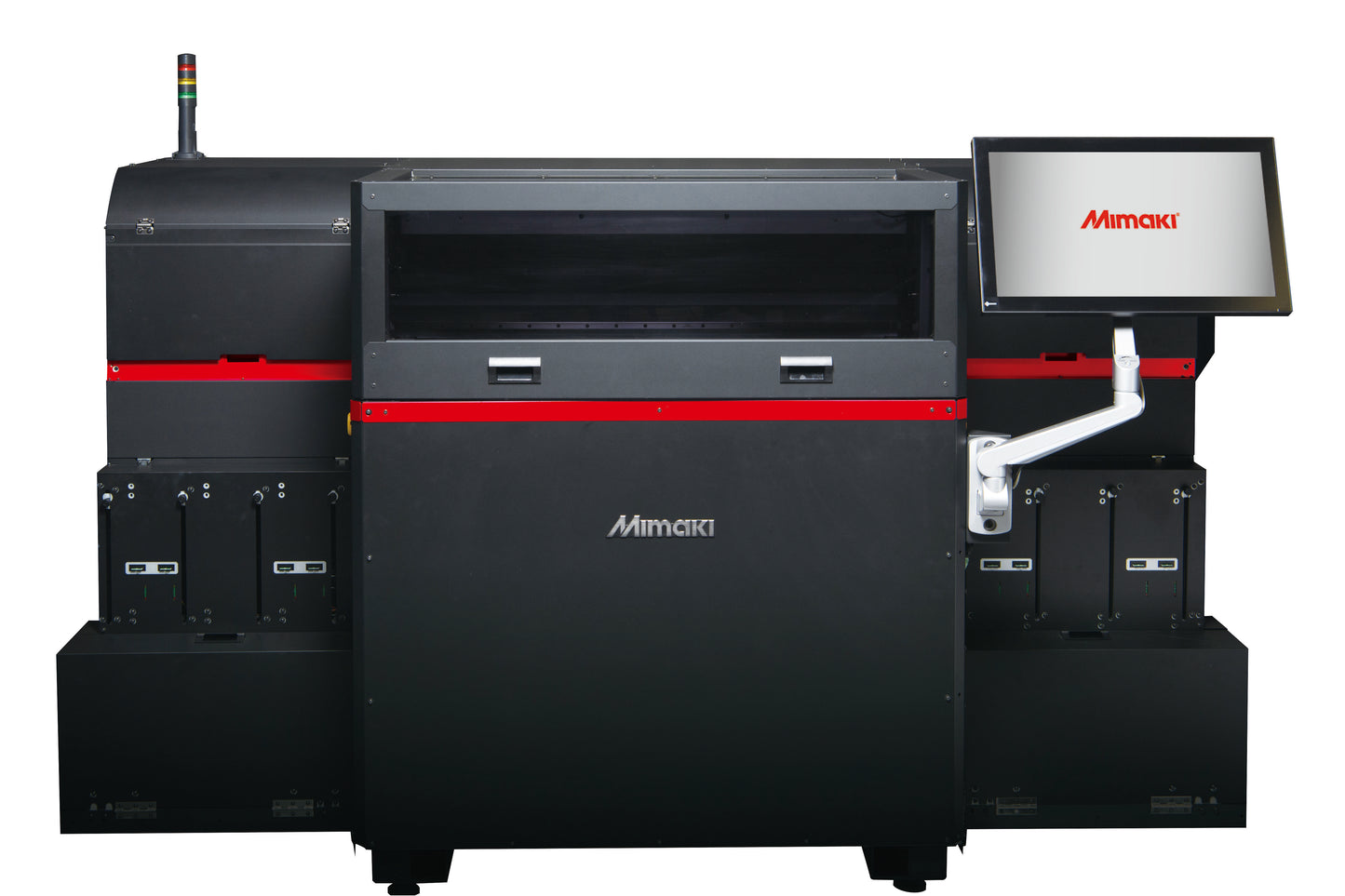

3DUJ-553
Couldn't load pickup availability
About the Product
Built for Productivity
High print speeds enable lower-cost prototyping completed within hours. This multi-color 3D printer yields fine details, smooth surfaces, and more efficient material use. It also improves workflow for designers in industrial and other professional segments.
- Prints over 10 million colors with ICC color management
- 8 piezo-electric industrial inkjet heads
- Works with CMYK, white, and clear inks
- Build area of 20” x 20” x 12” for effective prototyping
- Dual UV-LED curing of pigmented liquid photopolymer resins
- Prints in 22 micron layers per sweep for extra fine details
- 3DLink model layout software
- Water soluble support material for part durability
Specifications
| Build Area (W × D × H) |
20 x 20 x 12 inches (508 x 508 x 305 mm) |
| Max. Build Weight |
154.3 lbs (70 kg) |
| Color Range |
More than 10 million |
| Print Mode / Resolution / Thickness |
Fast / 42 micron |
| Curing |
Water-cooled LED-UV lamps x 2 |
| File Formats |
STL, OBJ, VRML, PLY, 3MF |
| Circulation |
Internal print head ink circulation |
| Interface |
Ethernet 1000 BASE-TX (Gigabit) |
| Safety Standards |
VCCI Class A / FCC CLASS A / ETL (UL60950 compliant) |
| Operational Environment |
Temperature: 59 – 95 °F (15 – 35 °C) |
| Power |
Single-phase 100-240 VAC, ±10%, 50/60 Hz ±1 Hz ×3 (Main unit 1 / Monitor 1 / External PC 1) |
| Power Consumption |
1,630W or less (Total) |
| Outer Dimension (W x D x H) |
88.6 x 59 x 61 inches (2250 x 1500 x 1550 mm) |
| Weight |
1323 lbs (600 kg) |
| Print Size |
X: 5cm Y: 50cm Z: 1cm = 250cm3 |
| Layer thickness |
|
| Resolution |
|
| Print time |
|
| Print size |
X: 50cm Y: 50cm Z: 1cm = 2,500cm3 |
| Layer thickness |
|
| Resolution |
|
| Print time |
|
Inks
| 3D Modeling Ink (MH-100) | Cyan | Magenta | Yellow | Black | White | Clear | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| 1L Bottle | MH100-C-BA | MH100-M-BA | MH100-Y-BA | MH100-K-BA | ||||||
| 4.8L Bottle | MH100-W-BD | MH100-CL-BD | MH110-PCL-BD |
*Inks sold vary by county, see specification chart above for details.
| 3D Support Ink | Support |
|---|---|
| 4.8L Bottle | SW100-Z-BD |
