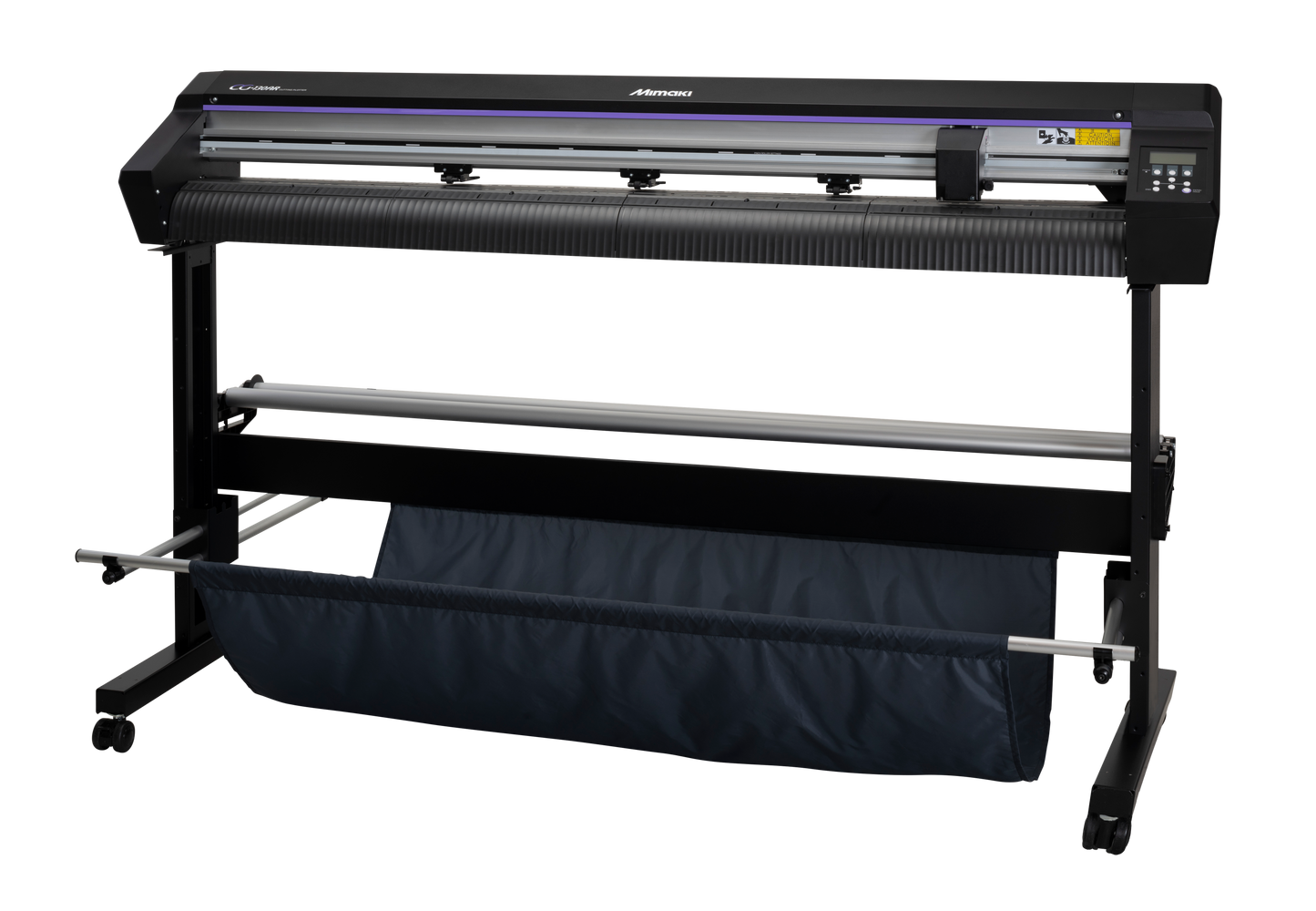

CG-AR Series
Couldn't load pickup availability
About the Product
Professional Cutting Made Easy
- Available in 29” and 61”
- Continuous crop mark detection for contour cutting; half cut function for easier handling
- Three selectable job speeds
- Media can be loaded from front or back
- Remote event notification function
- Perfect companion for any Mimaki roll-to-roll printer
- FineCut9 and SimplePop software included
- Sure Cuts A Lot software included only w/ CG60AR & Stand – Craft & Packaging Bundle
Specifications
Type Roll-based cutting plotter
Maximum Media Width CG-60AR: 29.1″ (740 mm)
CG-130AR: 61″ (1550 mm)Cutting Width CG-60AR: 23.9″ (600 mm)
CG-130AR: 53.9″ (1370 mm)Maximum media thickness Recommended sheets up to 0.01″ (.25mm) including laminate and liner; Up to 0.04″ (1mm) max (results may vary)
Maximum Cut Speed 28.7″/s (73 cm/s)
Moving speed second 40.5″/s (103 cm/s )
Maximum Cut pressure (Metric grams) 550g
Adjustable speed range 1-10cm/s: 1cm/s step adjustment
1-73cm/s: 5cm/s step adjustmentCutter Types Eccentric cutter, Blade for small character, Blade for reflective sheet, Blade for fluorescent sheet, Blade for PVC with low-pressure, Ball point pen, Cutter heavy paper, Creasing Tool
Mechanical resolution X direction: 2.5 μm; Y direction 5 μm
Program steps 25 μm or 10 μm (MGL-IIc); 100 μm, 50 μm (MGL-Ic1)
Repeatability +/- 0.2 mm / 2 M
Downforce pressure Cutter: 10-20g (2g step), 20-100g (5g step), 100-550g (10g step)
Pen: 10-20g (2g step), 20-100g (5g step), 100-150g (10g step)
Creasing tool: 10 – 20 g (2 g step), 20 – 100 g (5 g step), 100 – 550g (10g step)Command MGL-IIc, MGL-Ic1
Interface USB, RS-232C, Ethernet
Receive buffer 27MB standard, 17MB when sorting
Power supply AC 100 V – 240 V 1A 50/60Hz
Power consumption 168W or less | 228W or less | 228W or less
Operational Environment Temperature: 5 – 35 degC (41 – 95 degF),
Humidity: 35 – 75 ％ Rh (Non-condensing)Dimensions (W × D × H) CG-60AR: 1,010 × 355 × 355 mm (39.8 × 14.0 × 14.0″) 1,010 × 580 × 1,160 mm *6
CG-60AR w/ stand: (39.8 × 22.8 × 45.7″) *6CG-130AR: 1,810 × 580 × 1,160 mm (71.3 × 22.8 × 45.7″)
Weight CG-60AR: 37.5 lbs. (17 kg)
CG-60AR w/ stand: 27kg (59.5 lb) *6CG-130AR: 94.8 lbs. (43 kg)
